16Port Fiber Optic Terminal Box with HUAWEI MINI SC IndoorOutdoor Aerial-hanging
Description
FATB-0216R Fiber Access Termination Box is able to hold up to 16 subscribers and 120 splicing point. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
♦ Water-proof design with IP-65 Protection level.
♦ Integrated with flap-up splice trays.
♦ Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
♦ Easy for maintenance and expansion, neat cabling.
♦ Fiber bend radius control more than 40mm.
♦ 180 degree access with buckled lock structure.
♦ 1*8 or 1*16 PLC Splitter can be installed in each splice tray as option.
♦ 16 pcs of pre-installed reinforced water-proof adapter for SC.
♦ 1 mid-span cable entrance(10-16.5mm) for uncut cable.
Configuration
| Material | PC+ABS | Size | 340*220*95MM |
| Max Capacity
| Splice 120 Fibers (5trays,24 fiber/tray) | Reinforced Adapter | 16pcs SC/UPC or SC/APC |
| PLC Splitter 2pcs of 1x8 |
| Color
| Grey/Black | Weight | 1.85kg |
Application
♦ Wall-mounted Installation
♦ Pole-mounted Installation
♦ Aerial-hanging Installation
♦ Suitable for HUAWEI Pre-connectorized drop cable with reinforced connector
Standard Accessories
♦ Splice tray and cable management tool
♦ Installation nuts and bolts
♦ Protection sleeves
♦ Hose clamp
♦ Cable tube
♦ Key
♦ Wrench
♦ Rubber seal for cable entrance
Optional Accessories
♦ Pole mounted kits

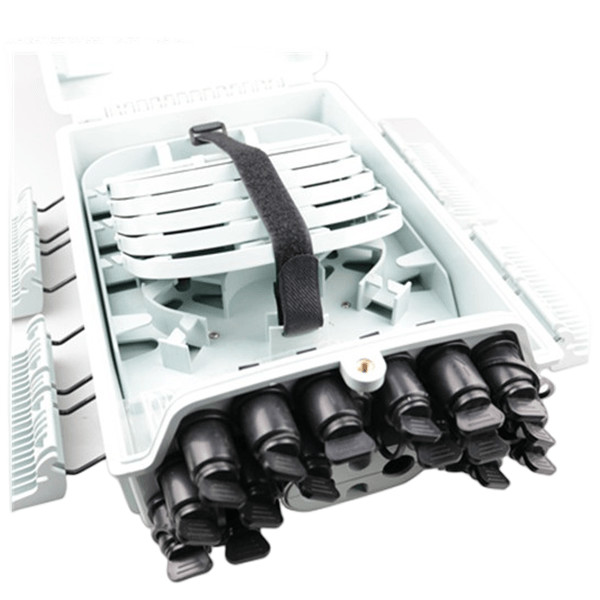

Details Picture
