48fo 96fo Fiber Optic Splice Closure Inline Joint Enclosure Fiber 6 Hole

Product Categories
Hunan Foconnec Technology Co., Limited
Contact Now

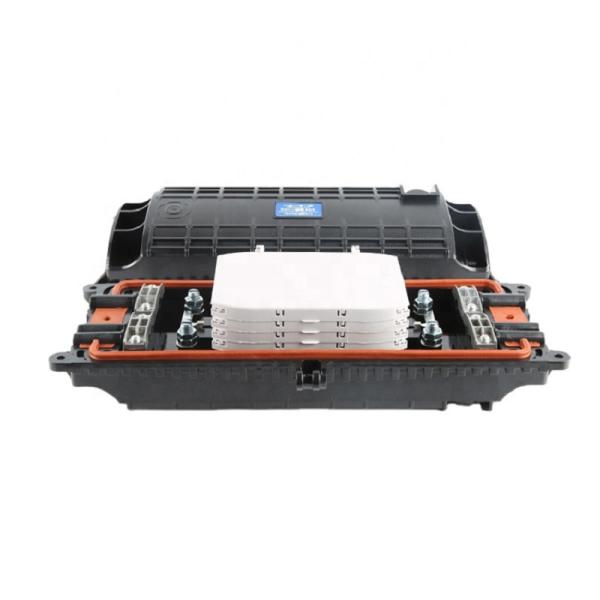

48fo 96fo Fiber Optic Splice Closure Inline Joint Enclosure Fiber 6 Hole

Brand Name : Twilight Optic

Model Number : GJS-H001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 10-15 work days

Packaging Details : Standard export carton packing.

Product name : 3 in 3 out inline splice closure

Material : strengthen PC

Color : black

Demention : 390*210*120MM

Diameter of cable : 7mm-16mm

Protection level : IP68

Cable entry ports : 6 pieces

Capacity of FOSC : 96core

Contact Now

Joint Enclosure 3in 3out 48fo 96fo Inline Closure 6 Hole Fiber Optic Splice Closure

Product Description

GJS-H001 Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available. The Inline type closure is also called Horizontal closure. The input and output are on the both sides. Inline closure is more suitable for backbone application. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried

Features

1. Easy to assemble
2. Protection level reaches IP68
3. High Quality plastic body material ensure the durability
4. Suitable for Φ7mm~Φ16mm cables
5. Aerial, underground, pipeline,man-holes,hand-holes assembling
6. Adapt to the ambient temperature from -40℃ to +65℃

Application

1. Direct buried installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access layer

Model GJS-H001
Type Inline type
Number of Inlet/Outlet ports 6 ports
Cable Diameter 2 ports×16mm, 4 ports×13mm
Maximum Capacity Bunchy: 96 fibers; Ribbon: 144 fiber
Capacity per Splice Tray Bunchy: single layer: 12 fibers; dual layers: 24 fibers;
Ribbon: standard: 3pcs; max.: 6pcs
Quantity of Splice Tray 4pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 390(L)×210(W)×120(H)mm
Net Weight 1.9~2.1KG
Temperature -40℃~65℃

48fo 96fo Fiber Optic Splice Closure Inline Joint Enclosure Fiber 6 Hole

48fo 96fo Fiber Optic Splice Closure Inline Joint Enclosure Fiber 6 Hole

48fo 96fo Fiber Optic Splice Closure Inline Joint Enclosure Fiber 6 Hole

48fo 96fo Fiber Optic Splice Closure Inline Joint Enclosure Fiber 6 Hole
